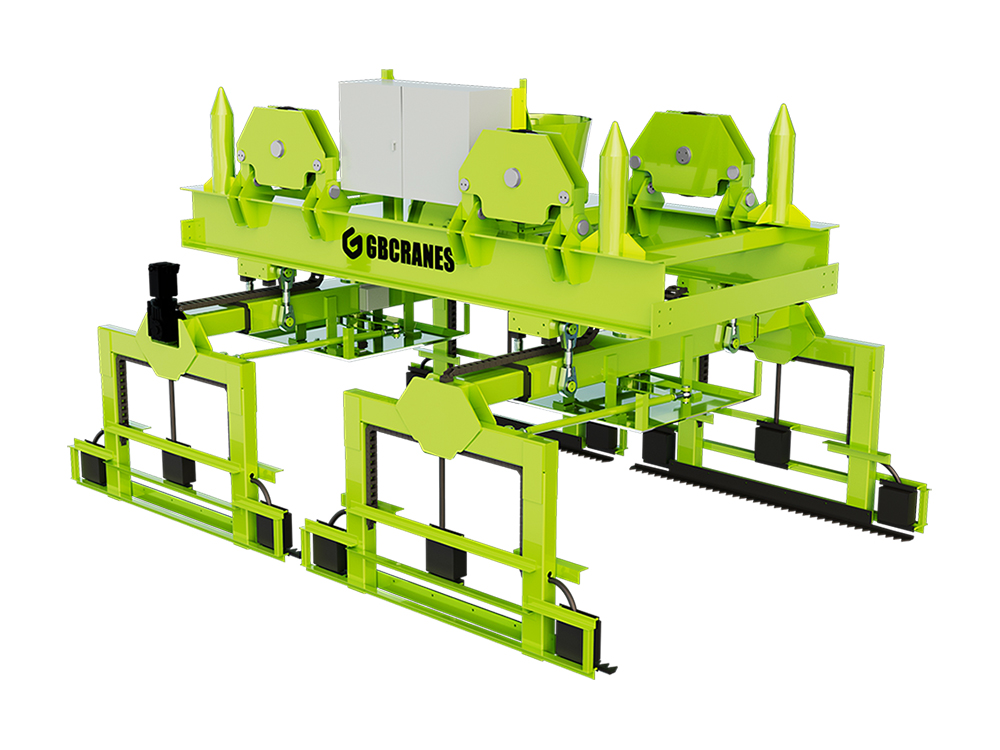

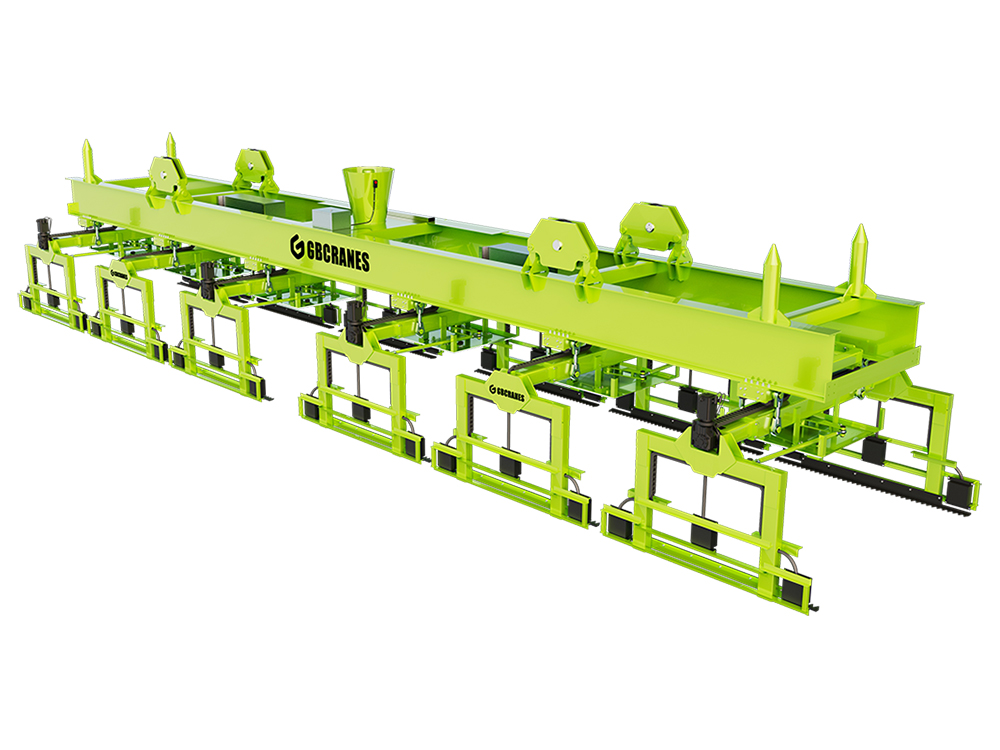

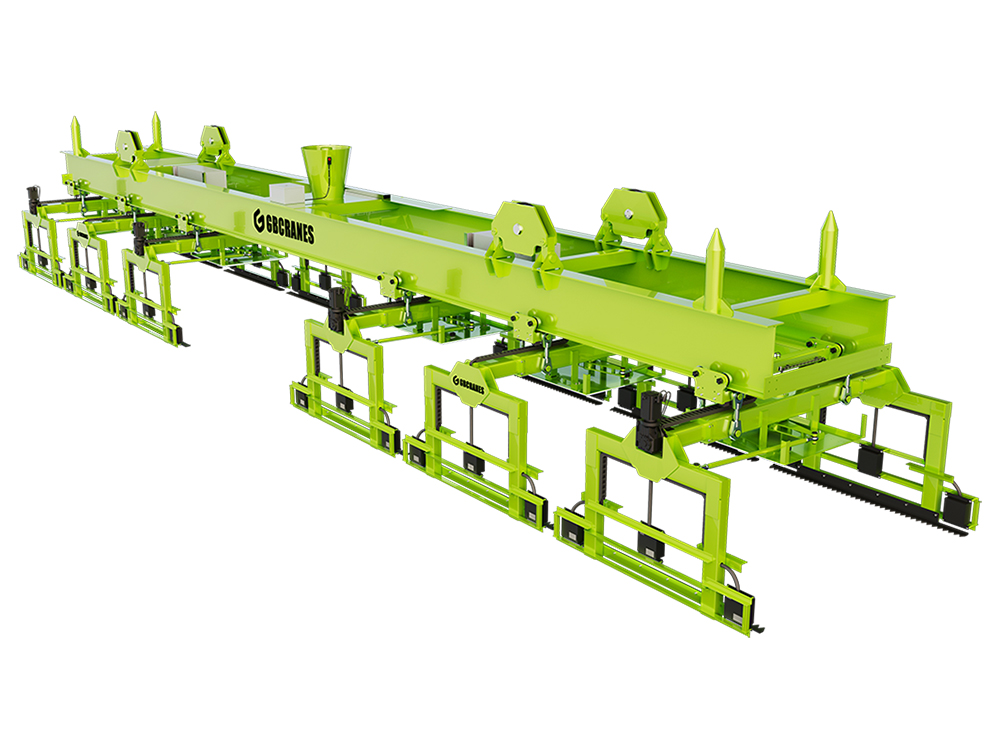

Electro straw bale yoke

GBCRANES electric straw bale yoke adopts the most advanced technology,which can handle multiple straw bale at the same time, up to 12 (can complete the loading and unloading of a complete truck at once, including the front and trailer), significantly improving the efficiency of straw bale loading and unloading.
Our electric straw bale yoke can handle straw bales of various sizes, suitable for semiautomatic and fully automatic cranes. The professional product consulting team of GBCRANES will provide you with customized solutions to meet your material handling needs.

Overview

Features
High quality
Continuous operation
Minimal maintenance requirements

Application
Energy sector
Processing biomass
Straw and similar materials

Options
Anti-tilt sensor
Humidity detector

Communication options
RS232C
RS485
Ethernet
Wifi
Profibus
Analog output
Output via radio

Weighing options
Total weight
Total weight search
Total weight erase

Technical Data Sheet

Max. Opening Width	3230mm	3230mm	3230mm	3230mm
Min. Opening Width	2030mm	2030mm	2030mm	2030mm
Humidity Measuring Range	1%-35%	1%-35%	1%-35%	1%-35%
Motor Power	7.5KW*2	7.5KW*3	7.5KW*6	7.5KW*6
Opening and Closing Time	18s	18s	18s	18s
Max. Lifting Speed	1m/s	1m/s	1m/s	1m/s
Recommended Wire Rope Diameter	15-19mm	15-19mm	15-19mm	15-19mm
Regulating Motor	/	/	/	0.37KW*4
