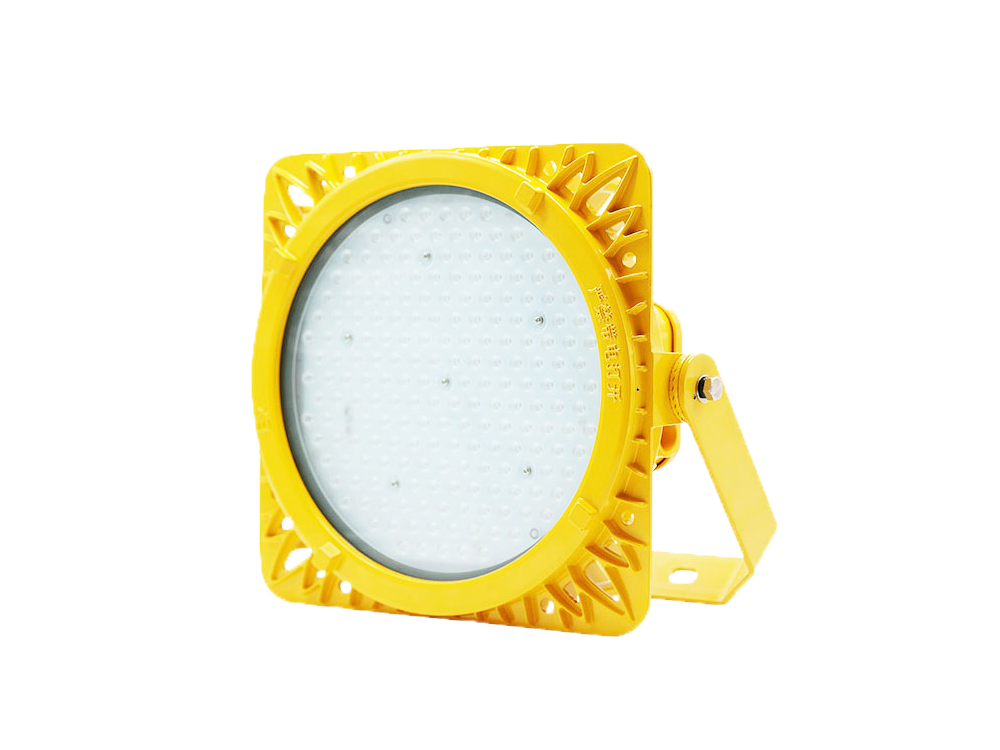

BFC8117 Explosion-proof LED ANTI-SEISMIC Floodlights

1. Suitable for Zone 1 applications
2. Degree of protection: IP 66
3. LED light source providing high luminous efficacy and long service life
4. Designed with a dimmer interface (DC 0 - 10 V)
5. Multiple mounting options such as seat mounting, wall mounting and ceiling mounting

Overview

Certification
International approvals ATEX, CCC, CNEX
Coding II 2 G Ex db eb mb IIC T4 Gb,
II 2 D Ex tb IIIC T130ºС Db
Conformity to standards IEC 60079 / IEC 60598
Material
Body material Aluminum alloy with epoxy powder coating
Diffuser Polycabonate
Light source
Wattage Type 200 W, 400 W LED
Luminous flux 140 lm / W
Life 50000 h
Rated voltage 220 V - 240 V AC 50 Hz / 60 Hz
Class of insulation Class I
Degree of protection IP 66
Operating temperature -20 ºC to +55 ºC
Cable entry G3/4
Corrosion-proof class WF2

Model Lamp power Lamp type Operating current Color temperature Weight
(W) (W) (A) (K) (kg)
BFC8117/200/LED 200 LED 3.6 5700 (cool white) 11.0 ± 1
BFC8117/400/LED 2 × 200 LED 3.6 5700 (cool white) 22.0 ± 1
