Advantage
Mobile use
Manual or electric lateral adjustment
Can be used for series operation
Component protection
Only one person can operate, ensuring a quick return on investment
Provide a variety of options to meet your personalized needs

Application
Bulky goods
Mechanical components
Marine diesel engines
Welded structures

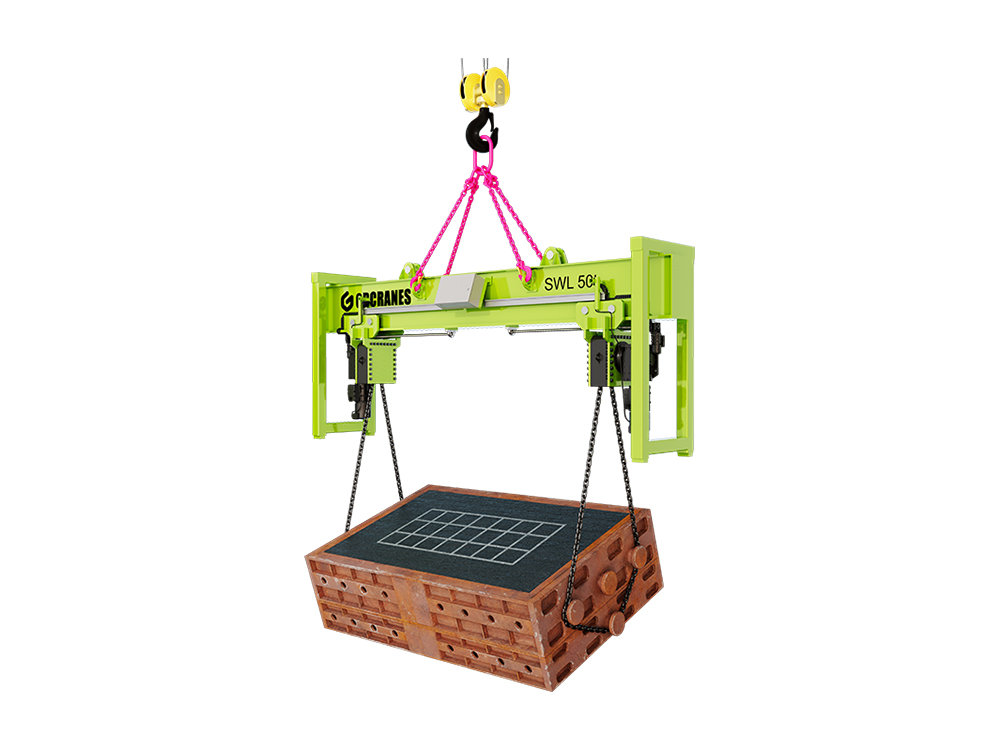

Mold boxes for the foundry industry

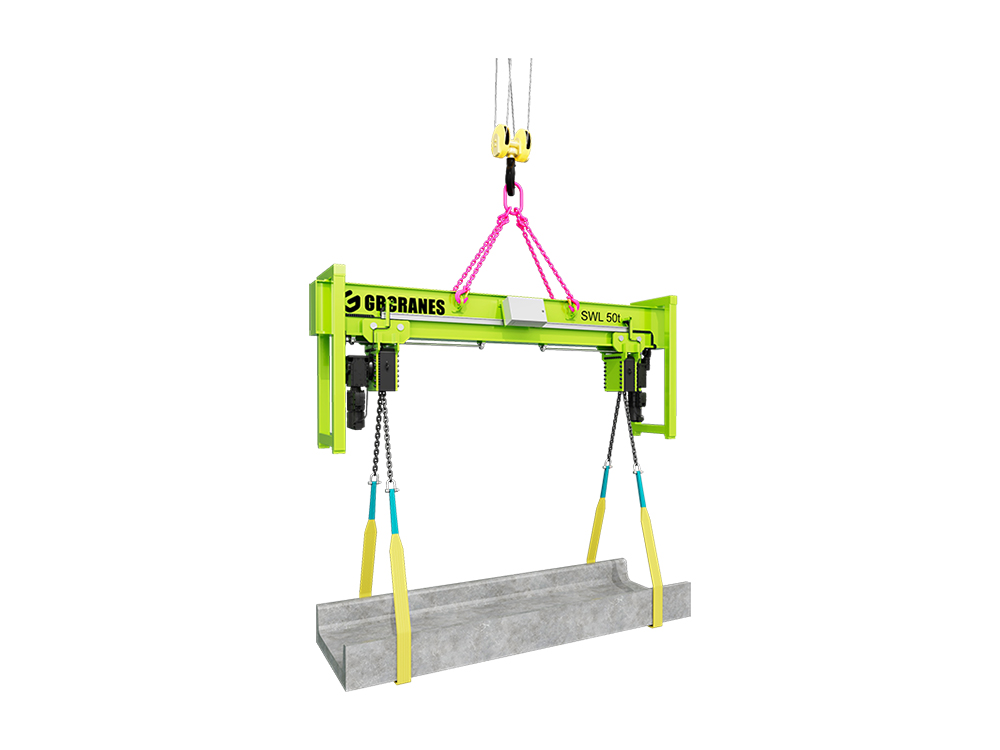

Concrete prefabricated parts
Glass bricks or steel ingots
Cast containers

Technical features
Suitable for various types of load flipping.
Compact design, minimizing lifting height loss.
Gear motor equipped with brake.
Steering is controlled by a wireless remote control to ensure a safe distance, no cable interference.
Ensure that the center of gravity is at the center of the component during operation.
Maximum tilt angle: up to 6 degrees relative to the horizontal.

Options
Chain
Available in ring or segmented designs, suitable for different load carrying capacity needs.
Loose roll
Used to rotate long parts and follow the movement of the equipment without the need for electric drive.
Pendant
Operators have the option of using pendant on the load-turning device's beam.
Spring cable drum
Used to establish the power connection between the crane and hoist, available in a variety of lengths.

Technical Data Sheet

Model	Load Turning Capacity	Qty of Chains/ Slings	Design Turning Torque	Turning Motor Power	Turning Chain Speed	Opening and Closing Speed	Opening and Closing  Motor Power	Structure Type
CTS100T	100t	4	50000N.M	2*7.5kw	2.8m/min	0.98m/min	2*0.55kw	Double Girder
CTS80T	80t	4	40000N.M	2*5.5kw	2.5m/min	0.98m/min	2*0.55kw	Double Girder
CTS50T	50t	2	25000N.M	2*3.0kw	2.8m/min	0.96m/min	2*0.37kw	Single Girder
CTS40T	40t	2	20000N.M	2*3.0kw	2.8m/min	0.96m/min	2*0.37kw	Single Girder
CTS20T	20t	2	10000N.M	2*2.2kw	2.5m/min	0.96m/min	2*0.25kw	Single Girder
CTS10T	10t	2	5000N.M	2*1.5kw	2.6m/min	0.96m/min	2*0.25kw	Single Girder
CTS5T	5t	2	3000N.M	2*1.1kw	2.8m/min	0.96m/min	2*0.25kw	Single Girder
CTS3.2T	3.2t	2	1700N.M	2*0.75kw	2.8m/min	0.96m/min	2*0.25kw	Single Girder
CTS2T	2t	2	900N.M	2*0.55kw	3.1m/min	0.96m/min	2*0.25kw	Single Girder
CTS1T	1t	2	500N.M	2*0.37kw	2.6m/min	0.96m/min	2*0.25kw	Single Girder
