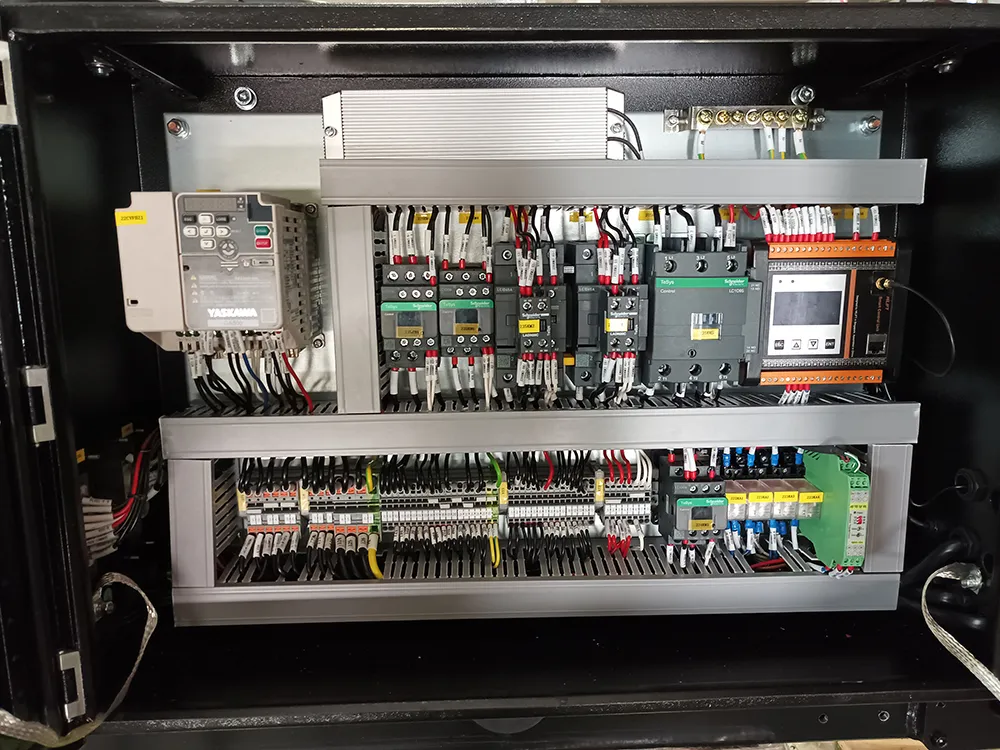

If the mechanical components of a CH wire rope hoist are its skeleton, then the HILIFT SCU (Smart Control Unit) is its intelligent brain. This electronic monitoring device, specifically designed for wire rope electric hoists, integrates four major functions: safety protection, intelligent monitoring, remote maintenance, and flexible expansion. It completely changes the inefficient traditional hoist operation model, which relies on experience and on-site troubleshooting.

The core value of the SCU lies first and foremost in addressing traditional pain points. In terms of safety, it replaces manual inspections, monitoring for risks such as overload and motor overheating in real time. In terms of maintenance, it reduces downtime by 90% through remote debugging and fault notifications. In terms of adaptability, it is compatible with dual-speed/variable frequency/permanent magnet motors, various hoist structures, and control methods, eliminating the need for customized solutions. Its specific advantages can be quantified as 80% safety upgrade, 90% efficiency improvement, and 30% cost optimization. For example, when the load suddenly increases, the SCU can detect a load increase of more than 30% within 200ms and reduce the speed to a low level, preventing wire rope breakage. From a functional perspective, the SCU constructs an intelligent system encompassing three layers of protection, full-cycle monitoring, and remote management. The first layer is load safety protection: lifting is prohibited when the load exceeds 110% of the rated value; speed is reduced during sudden load increases; and a customizable threshold for intermediate loads eliminates overload risks. The second layer is equipment safety protection: it monitors motor temperature using PTC thermal resistors (shutting down when exceeding 155℃), detects lifting overspeed using coding (braking at 1.25 times the rated value), and monitors brake wear using microswitches, protecting core components. The third layer is operational safety protection: it features three levels of password access for operators, engineers, and experts, coupled with anti-tilt (shutting down when the tilt angle exceeds 4°), slack rope protection, and area limit switches to prevent human error.

In terms of monitoring and management, the SCU acts as a health manager for gourds: it automatically records data such as running time, number of starts, and peak load, generates remaining safe working cycles (DWP%) and brake life prediction, pushes maintenance reminders 60 days in advance, and records faults including codes, load/speed data, and timestamps, supporting 3-month retrospective analysis for easy source tracing. Data can be exported to Excel reports or synchronized to the cloud, adapting to enterprise digital management. Remote operation and maintenance makes remote operation possible, allowing load calibration and firmware upgrades to be completed via a mobile app, one-click switching and management of multiple devices, and pushing cause analysis and solutions when a fault occurs, even sharing them with engineers with one click for remote consultation.
