Yuanxiu knight SE800 series-Basic edition

Industrial-grade AR solutions custom-designed around user needs
Yuanxiu knight SE800 is the only one in the industry that can adapt to different demand scenarios and provide different hardware combination solutions, aiming to meet the needs of users in stimulating, enhancing and improving the work capabilities of front-line employees. While realizing remote connection and collaboration between front-line personnel and experts, it also has more functions such as workflow visualization, 10T data visualization, and production safety digitization.
In a consultative manner, we help users find suitable solutions to reduce downtime, improve product quality, improve production safety and employee efficiency, thereby reaping significant return on investment.

Overview

Build for efficiency. Designed to ensure production.
Free your hands, Data is visible in your eyes.
Plug and play, charge and use at the same time, ensuring uninterrupted use throughout the day and improving work efficiency.
Improve the quality of emote operation guidance.
Improve work efficiency, save travel costs and reduce equipment downtime.
Revolutionary quick-plug expansion for sensing collection.
Increase agility and applicability, and expand more application scenarios.

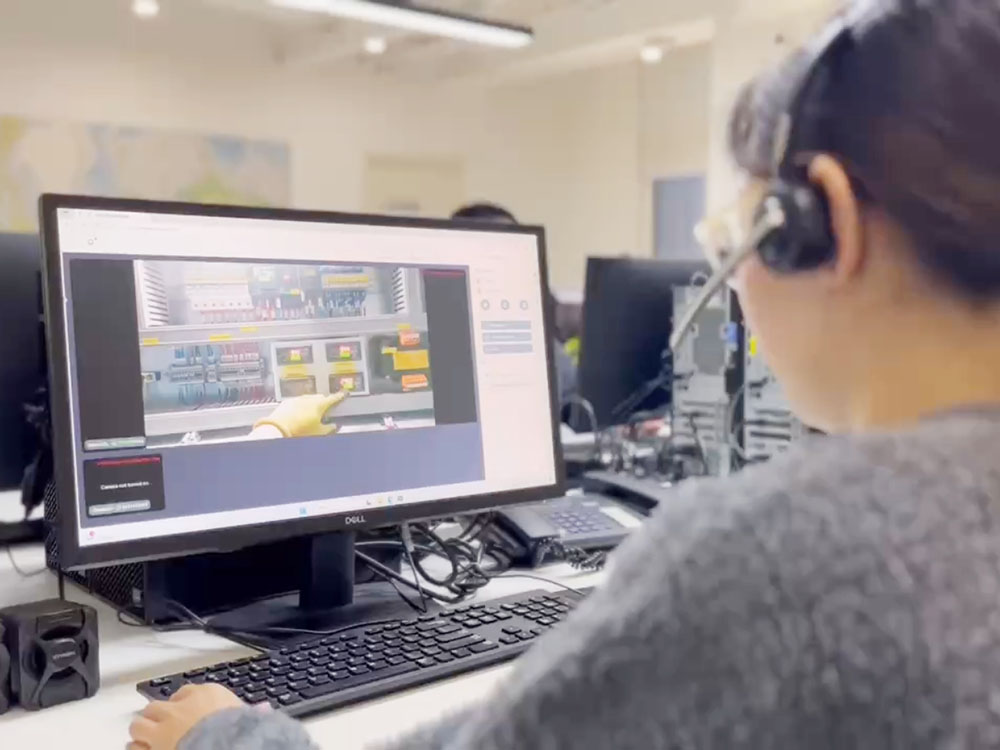

Built-in remote guidance application.
The remote guidance software is free to use, with no limit on the number of accounts, reducing implementation risks and quickly deploying applications.

AR glasses performance features
1. 120-inch large screen, 1080p@60Hz high resolution, 500,000:1 high contrast ratio.
2. Wearability, 3-axis 270° free hovering, head-mounted mode can be detachable and switched.
3. High reliability, suitable for use in harsh industrial environments.
Expandable:
Temperature Sensor
Motion detector
size sensor
Electrical parameter sensor
Thermal Imaging
Vibration sensor
microscope
IO data access

AR glasses can be worn in three ways ---------*Supports 5G/4G/Wifi communication

Yuanxiu knight SE800 series·Hardware composition

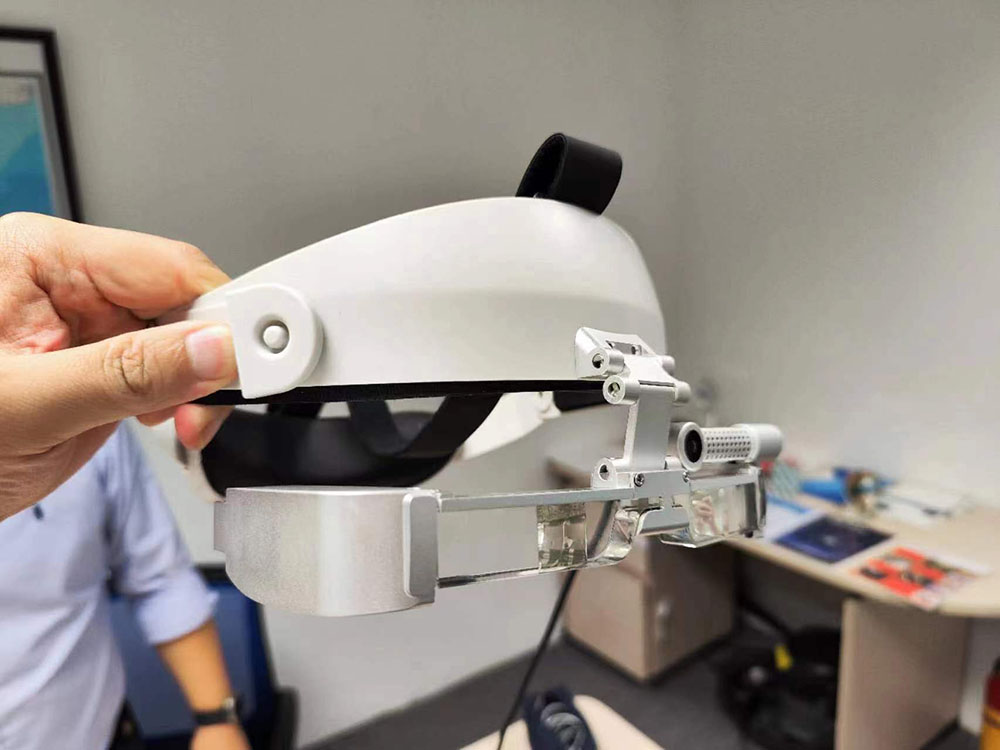

AR glasses

Specification Type	Parameter	Features
High performance glasses	resolution 1920*1080	Si-OLED micro display technology clearer display
Contrast ratio	500,000:1	detailed color gradation
Virtual screen	equivalent to 120-inch	giant screen high-definition experience
FOV	Approx. 34°	Large field of view for immersive experience
Camera	800W pixels	HD shooting automatic zoom

AR host: can adapted to the following hosts (Android)

Host parameters	Phone version	WIFI version	WIFI-S version	5G version
CPU	According to the mobile model	2.45GHz	2.5GHz	octa-core 2.8GHz
Communication	4G/5G/WIFI	WIFI	WIFI	4G/5G/WIFI
Auxiliary screen display	Yes	N one	Yes	N one
Rear camera	/	/	1300W pixels	/
Battery capacity	According to the mobile model	7000mAh	65 00mAh	81 00mAh
Battery life	According to the mobile model	4 hours/used while charging	3.5 hours/used while charging	4 hours/used while charging
software	Yuanxiu Knight- AR remote guidance software， Free	Yuanxiu Knight- AR remote guidance software， Free	Yuanxiu Knight- AR remote guidance software， Free	Yuanxiu Knight- AR remote guidance software， Free

Yuanxiu Knight - AR remote guidance software		Model: SE800-WIFI
Part Category	Product Component	Model	Unit	Qty

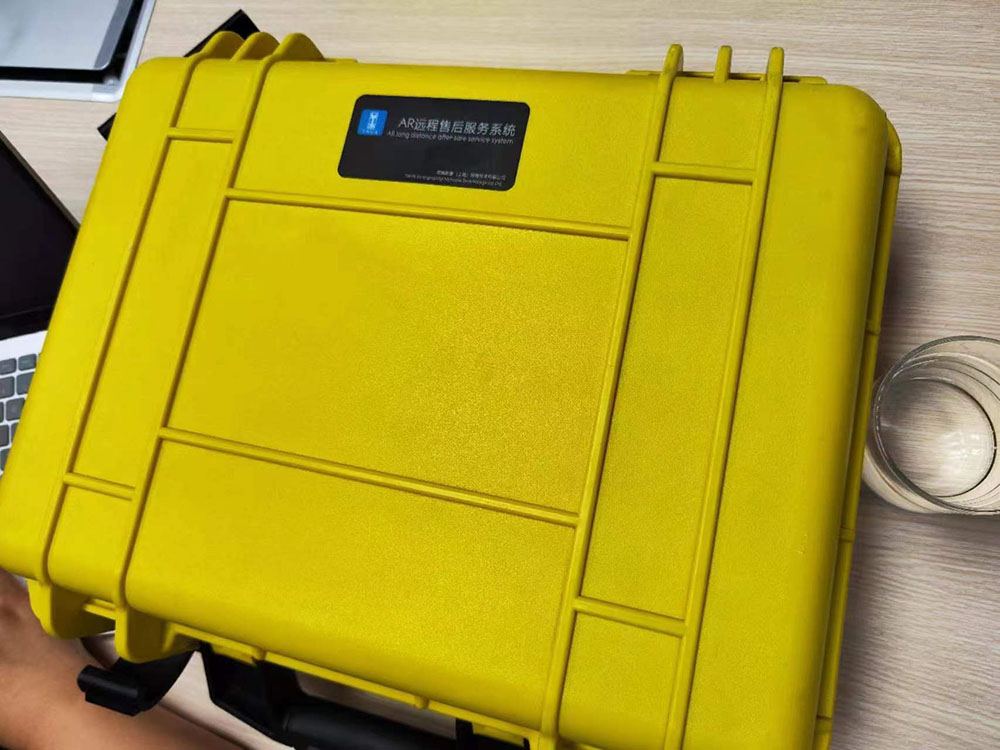

Protective box	Box	TMVA-2021-72	pcs	1
AR glasses	AR glasses	30D-00279	set	1
AR host	host main body	30D-00062	unit	1
Accessories	5V charger		pcs	1
	TYPE-C power cord		pcs	1
	Bluetooth knob		pcs	1
	Bluetooth headset		pcs	1
	Micro USB power		pcs	1
